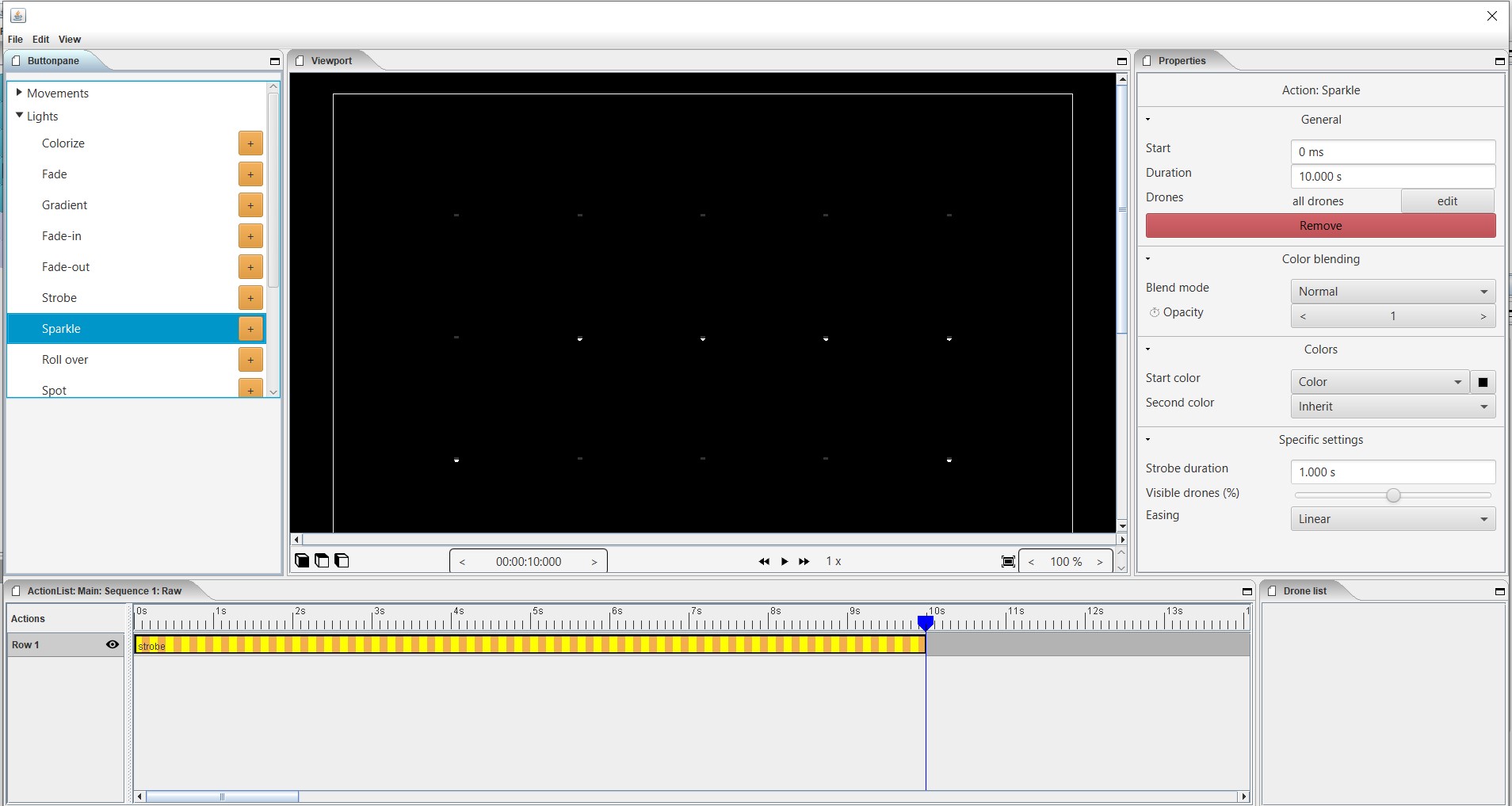

3.3.2.2.7. Sparkle

Function in which the LEDs turn on and off very quickly and are randomly distributed among all drones in the complete design.

• Properties

  • Start

    Shows the time when a action sparkle starts. The unit is displayed in milliseconds. 3,000ms = 3 sec. You can always adjust the starting position numerically.

  • Duration

    Specifies the duration of the action. The unit is displayed in milliseconds. 3,000ms = 3 sec. You can always numerically adjust the duration.

  • Drones

    With drones you can make a choice to which the action is applies. You can apply the action to all drones, then choose “all drones” or you can apply the action to one or more selected drones and then choose edit => select the drone => use selected drone

  • Remove

    With this button you delete the action that you have placed in the timeline.

  • Blende mode

    With blende mode you have different options to mix colors, an extra color on top of the basic color that is given from the start page.

  • Opacity

    The higher the number, the darker the color.

  • Start color

    • Inherit

      Inherit, here the program will always take the color that is just above the action in the timeline. Example row 1 = blue, row 2 = yellow and row 3 = gradient action => the gradient action on row 3 takes the color that is just above it, so from row 2 = yellow.

    • Color

      Here you choose a color yourself via the color fan, HSB color or RGB color.

    • Random

      The program will choose a color itself.

  • Second color

    • Inherit

      Inherit, here the program will always take the color that is just above the action in the timeline. Example row 1 = blue, row 2 = yellow and row 3 = gradient action => the gradient action on row 3 takes the color that is just above it, so from row 2 = yellow.

    • Color

      Here you choose a color yourself via the colors range, HSB color or RGB color.

    • Random

      The program will choose a color itself.

  • Strobe duration

    Enter the duration for how long a light flash burns, expressed in milliseconds.

  • Visible drones (%)

    Here you can determine the number of drones that will flash simultaneously during the strobo action.

  • Easing

    Nothing in nature moves linearly from one point to another. In reality, things tend to speed up or slow down as they move. Our brains are wired to expect these types of movements, so if you are animating you should use this to your advantage. Natural movement makes your users feel more comfortable with your design, which in turn leads to a better overall experience.

    • Linear

      SSparkle without any smoothing, the values increase in equal amounts.

    • Ease in

      Sparkle starts slowly and accelerates towards the end.

    • Ease out

      Sparkle starts quickly and slows down towards the end.

    • Ease in-out

      Sparkle starts slow, accelerates towards the center and slows back towards the end.

    • none

      SSparkle without easing function.

  • Keyframes

    • With a keyframe you can add a movement or application to your layout. On the basis of a start and end point, you can place this application on the timeline of your clip or scene and move it as desired. Between these two points the action (sparkle) will be active. *
